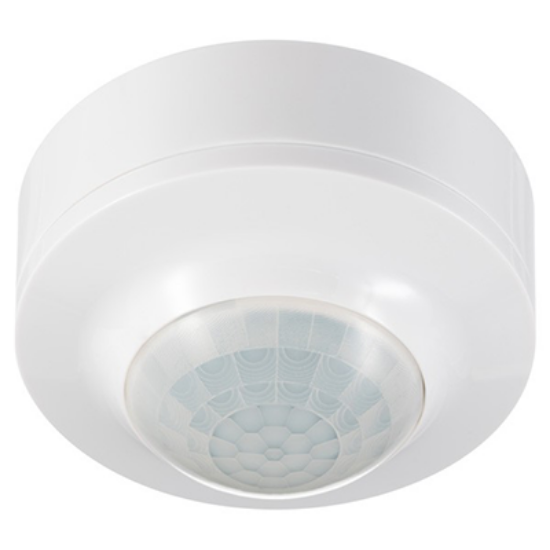

Timeguard SureTime 360° Surface Mount PIR Sensor

Product Code : STW360

13 in Stock

£17.93 INC VAT

Features:

  • Surface Mounted PIR Sensor
  • 360° detection angle
  • 6m detection range
  • Adjustable light level
  • 1000W of halogen lighting
  • 200W fluorescent/LED
  • Large mains terminals
  • Manual override
  • Convenient controls concealed
  • A removable shroud

Specifications

Operating Voltage230V AC
Frequency (Hz)50
InstallationSurface
Class ProtectionClass 2
Number of Channels1
IP RatingIP40 (Rated suitable for restricted internal applications)
Lux Level10 - 1000, User adjustable
Operating Temperature-20°C to + 40°C
AccessoriesInstructions, Fittings, Cable clamps, Lens mask sticker
DimensionsHeight 88mm, Width 88mm, Depth 50mm
Weight72g
EAN5012483014325
Warm Up Time60 Seconds
PIRPolycarbonate
Angle of Detection360°
Light ON Time After Last Detection (Adjustable)3 seconds to 18 minutes, User adjustable
Slave TerminalYes (Maximum of 5 STFM360 PIR sensors can be wired in parallel. Total load must not exceed the lamp rating of a single STFM360 unit.)
Detection Range (Max) Metres6-8 meters, Fixed (Achieved at a 2.5m mounting height)
Permanent ON FacilityYes, Pulse (6 hours max)
Dusk Until Dawn ModeNo
