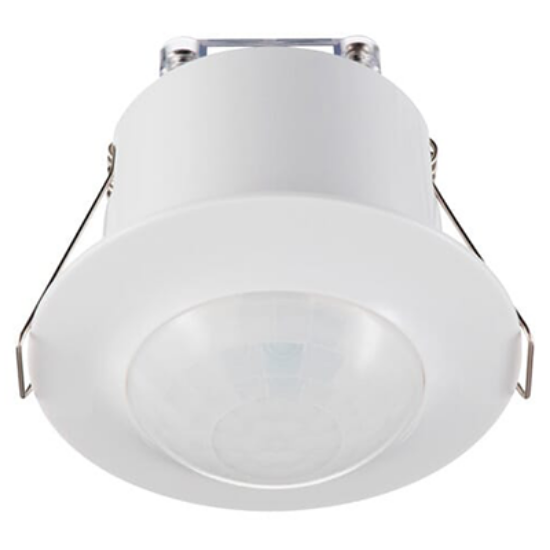

Picture of Timeguard SureTime 360° Flush Mount PIR Sensor
Picture of Timeguard SureTime 360° Flush Mount PIR Sensor

Timeguard SureTime 360° Flush Mount PIR Sensor

Product Code : STFM360

6 in Stock

£17.93 INC VAT

Features:

  • Flush Mounted PIR Sensor
  • 360° detection angle
  • A 6m detection range
  • Adjustable light level
  • 1000W of halogen lighting
  • 200W fluorescent/LED
  • 200W Low Energy/CFL
  • Includes large mains terminals
  • Manual override
  • Convenient controls
  • A removable shroud
  • 2 Years Warranty

Specifications

Operating Voltage230V AC
Frequency (Hz)50
InstallationFlush
Class ProtectionClass 2
Number of Channels1
IP RatingIP44 (Rated suitable for restricted internal applications)
Operating Temperature-20°C to + 40°C
Ceiling Cut-Out60mm
AccessoriesInstructions, Fittings, Cable clamps, Lens mask sticker
DimensionsHeight 76.5mm, Width 82mm, Depth 82mm
Weight86g
EAN5012483014288
Warm Up Time60 Seconds
Angle of Detection360°
Light ON Time After Last Detection (Adjustable)3 seconds to 18 minutes, User adjustable
Slave TerminalYes (Maximum of 5 STFM360 PIR sensors can be wired in parallel. Total load must not exceed the lamp rating of a single STFM360 unit.)
Detection Range (Max) Metres6 meters, Fixed (Achieved at a 3m mounting height)
Permanent ON FacilityYes, Pulse (6 hours max)
Dusk Until Dawn ModeNo
Lux Level10 - 1000, User adjustable
PIRPolycarbonate
