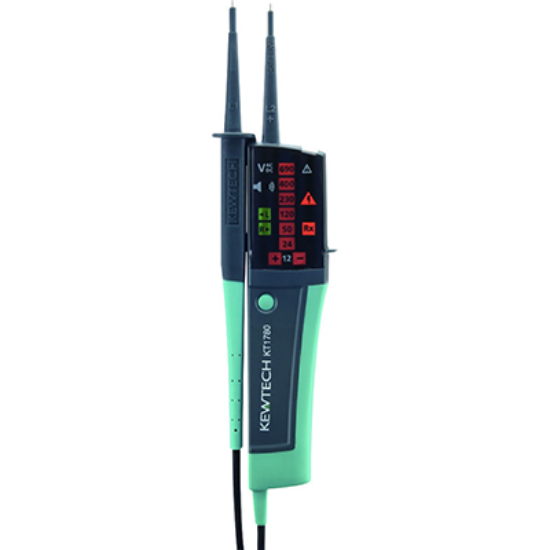

KT1780 2 Pole LED Voltage Tester

Product Code : KT1780

2 in Stock

£57.72 INC VAT

Features:

  • Clear, Bright & Slender
  • The Ultimate Voltage Detector
  • Clear Oversize Luminous LEDs
  • Clear Audible Tone
  • UK Specific GS38 Slender Probe Tips
  • Bright Touch Light
  • Gives Ample Illumination
  • Fits into Recessed Terminals
  • Phase Rotation
  • AC & DC Voltage Tests
  • Up to 690 Volts
  • Soft to Touch
  • Continuity Test
  • Self Diagnostic Test
  • Single Pole Phase Test
  • Polarity Indication
  • Auto Power On/Off
  • IP65 Rating
  • International Safety Standards
  • CAT IV 600V
  • Built In Test Leads
  • Batteries Included
  • Instruction Manual
  • Certificate of Conformity

Specifications

Voltage12 - 690V AC/DC
Peak CurrentIs <3.5mA (at 690V)
Internal Battery ConsumptionApprox. 80mA (battery 3V, measuring 690V AC)
Weight190g (including batteries)
Battery LifeApprox. 1000 operations (30s ON/240s OFF duty
Nominal Voltage12/24/50/120/230/400/690V, AC (16~400Hz), DC (±)
Tolerance (Threshold Voltage)Light on at more than : 7 ± 3V (12V LED), : 18 ± 3V (24V LED), : 37.5 ± 4V (50V) 75%±5% of nominal voltage, (120/230/400/690V LED)
Batteries included3V (2 x 1.5V AAA / LR03)
Response Time<0.6s at 100% of each nominal voltage
StandardsIEC 61010-1:2010, IEC 61243-3:2010, IEC 601010-031:2008 Category: CAT III 690, CAT IV 600V polution deg 2 IEC 61557-7:2007
Dimensions243 x 64 x 26 mm
