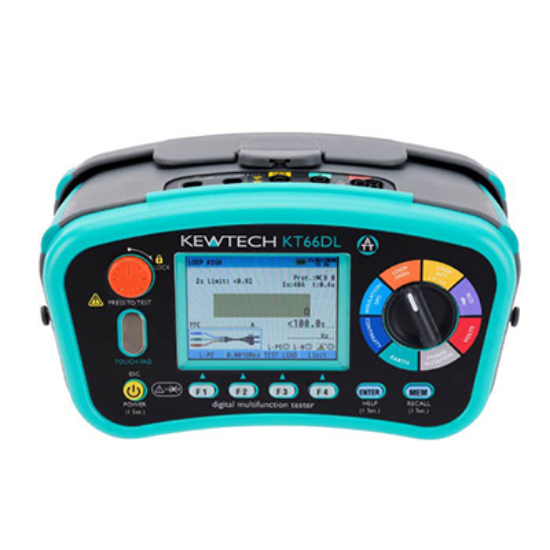

Picture of KT66DL Multifunction Installation Tester with EV Charging Test Adapter
Picture of KT66DL Multifunction Installation Tester with EV Charging Test Adapter

KT66DL Multifunction Installation Tester with EV Charging Test Adapter

Product Code : KT66DL

£1149.06 INC VAT

Features:

  • Continuity tests at 200mA
  • Or 15mA with selectable buzzer
  • 1000V auto discharge voltage
  • Insulation resistance tests
  • Earth resistance test 2/3 wire
  • High current loop test
  • Anti-trip technology loop test
  • 55V low/high current loop test
  • RCD test for type AC, A, F, B
  • EV and variable RCDs
  • Single/auto voltage options
  • Ramp/contact voltage options
  • Phase rotation test
  • SPD test
  • PAT function for insulation
  • Conductor resistance tests

Specifications

3 Phase RotationYes
Ac Voltage Measurement600V AC
Batteries includedyes
Battery Level IndicatorYes
SizeBattery Size AA
Continuity CheckYes
Weight1.35kg
Continuity Range0.01 Ω - 2000 Ω
Dimensions(H)114 mm x (W)235 mm x (D)136 mm
Earth Electrode TestYes
Insulation Resistance Measuring Range0.1 MΩ - 2000 MΩ
Insulation Test Voltage250V / 500V / 1000V
Loop Impedance Range0.01 Ω - 2000 Ω
Rcd Settings½ / x1 / x5 @ 0° and 180° / Type AC / A / F / B / Auto and Ramp Tests
Rcd Test Range10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
Resistance (Ohms)0.01 Ω - 2000 Ω
Safety RangeCAT III 600V CAT IV 300V
StandardsEC61557-1,2,3,4,5,6,7,10
Supplied WithACC064SP G7 Test Probe with Remote Test Button, ACC065 G7 Test Lead Set, KEWEVSE EV Charging Point Adapter, Earth Spike Kit, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Software, USB Lead, Test Lead Pouch and Soft Carry Case
