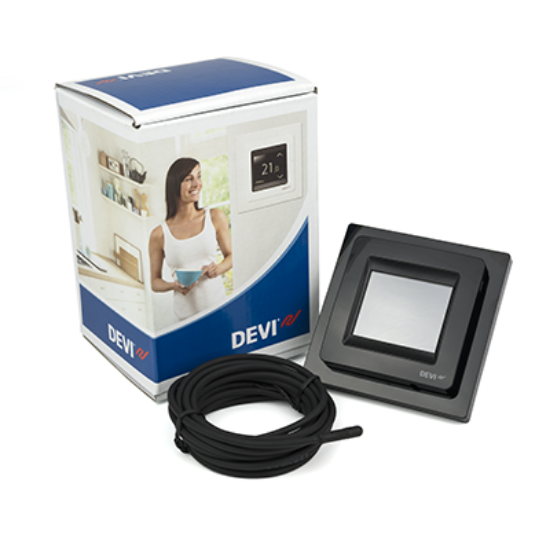

Electrical Supplier. DEVIreg™ Touch Pure Black

Weight	Gross weight=0.24kg Net weight=0.24 kg
EAN	5703466225608
2-pole switch	No
Ambient temperature [°C] [Max]	30 °C
Ambient temperature [°C] [Min]	0 °C
Ball pressure test temperature [°C]	75 °C
Battery Backup	Yes
Certification company	CE, EAC, Intertek, Semko, UkrTEST
Colour	Black RAL 9005
Compatible foreign sensor type	Yes
Compatible frame system	Yes
Depth	24 mm
DIN mounting	No
Display (Yes/No)	Yes
Display type	Touch screen
Terminal cable size max [mm²]	2 x 2.5

IP Rating	21
Frost protection [°C]	5 °C
Height	85 mm
Inductive load	cos φ= 0.3 max 1A
Package depth [mm]	140 mm
Package height [mm]	85 mm
Package width [mm]	95 mm
Pollution degree	2
Regulation type	PWM
Relay switch	1-pole
Resistive load max [A]	16
Sensor definition point [Ohm/°C]	15kΩ / 25°C
Sensor type	Room + Floor
Software class	A
Standby power consumption [W] [Max]	0.4 W
Width	85 mm

Storage temperature [°C] [Max	65 °C
Storage temperature [°C] [Min]	-20 °C
Supply voltage [V] AC	230 V
Supply voltage [V] AC [Max]	240 V
Supply voltage [V] AC [Min]	220 V
Temperature - floor [°C] [Max]	45 °C
Temperature - floor [°C] [Min]	5 °C
Temperature - room [°C] [Max]	35 °C
Temperature - room [°C] [Min]	5 °C
Temperature limiter [°C] [Max]	45 °C
Temperature limiter [°C] [Min]	5 °C
Temperature max. limiter [°C] [Max]	35 °C
Temperature max. limiter [°C] [Min]	20 °C
Temperature min. limiter [°C] [Max]	35 °C
Temperature min. limiter [°C] [Min]	10 °C
