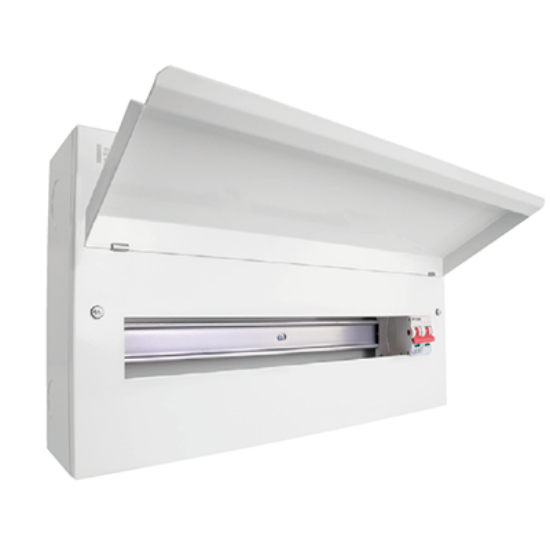

Picture of 22 Way Metal Consumer Unit with 100A Mains Switch (20 Free Ways)
Picture of 22 Way Metal Consumer Unit with 100A Mains Switch (20 Free Ways)

22 Way Metal Consumer Unit with 100A Mains Switch (20 Free Ways)

Product Code : CUEB22MS20

3 in Stock

£66.00 INC VAT

Features:

  • Total Ways: 22
  • Free Ways: 20
  • Blank modules supplied: 2
  • Impact Rating: IK05
  • IP Rating: IP20
  • Standards: BS EN 61439-3
  • Standards: BE EN 60947-3
  • Finish: White (RAL 9003)
  • Enclosure & Cover: Powder Coated Steel
  • DIN Rail: Galvanised Steel
  • Warranty (Devices): 3 Years
  • Warranty: 10 Years

Specifications

Number of ways22 Ways
Free Ways20 Ways
Maximum Rated Current (In)100A
Relative Humidity95% Max
Dimensions With Door474mm (W) x 260mm (H) x 115mm (D)
Enclosure Dimensions474mm (W) x 260mm (H) x 92mm (D)
Operating Voltage230V 50/60Hz
Warranty(Devices): 3 Years
Terminal Capacity35mm²
IP RatingIP20
Operating Temperature-5°C to +40°C
