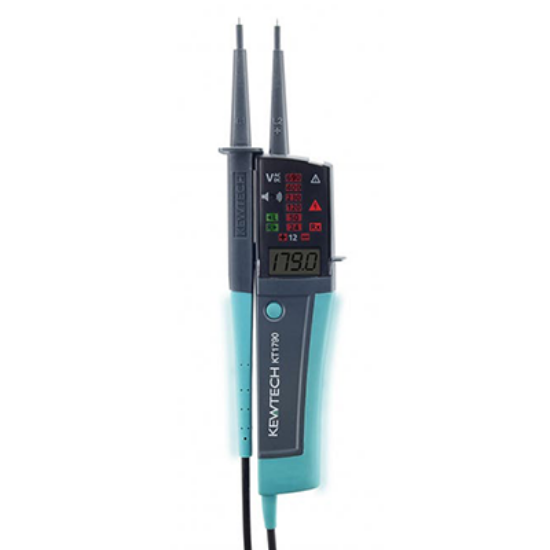

Picture of 2 Pole LED & LCD Voltage Tester
Picture of 2 Pole LED & LCD Voltage Tester

2 Pole LED & LCD Voltage Tester

Product Code : KT1790

2 in Stock

£88.92 INC VAT

Features:

  • Clear, Bright & Slender
  • Ultimate Voltage Detector
  • Clear Oversize Luminous LEDS
  • LCD Voltage Induction
  • Clear Audible Tone
  • UK Specific GS38 Slender Probe
  • Bright Torch Light
  • Ample Illumination
  • Phase Rotation
  • AC & DC Voltage
  • Up to 690 Volts
  • 0.1V LCD Resolution Display
  • Soft to Touch
  • Continuity Test
  • Self Diagnostic Test
  • Single Pole Phase Test
  • Polarity Indication
  • Auto Power On/ Off
  • IP65 Rating
  • International Safety Standards
  • CAT IV 600V
  • Built in Test Leads
  • Batteries Supplied
  • Printed Instruction Manual
  • Certificate of Conformity

Specifications

LED Tolerance7±3V (12V LED), 18±3V (12V LED), 37.5V±4V (50V LED) 75%±5% of nominal voltage (120/230/400/690V LED)
Response TimeLED - <0.6S at 100% of each nominal voltage
LCD Accuracy (23+/-5ºC)±1.5V (7~100V), ±1% ± 5dgt (100~690V), AC(16~400Hz), DC(±)
LCD Response Time<1s at 90% of each voltage
Peak CurrentIs<3.5mS (at 690V)
Internal Battery ConsumptionApprox. 80mA (battery 3V, measuring 690V AC)
Measurement Duty30S On (operational time) 240S Off (recovery time)
StandardsIEC 61010-1:2010, IEC 61243-3:2010, IEC 601010-031:2008 Category: CAT III 690, CAT IV 600V polution deg 2 IEC 61557-7:2007
IP RatingIP65 (IEC60529)
Dimensions243 x 64 x 26 mm
Weight190g (including batteries)
Batteries included3V (2 x 1.5V AAA / LR03)
