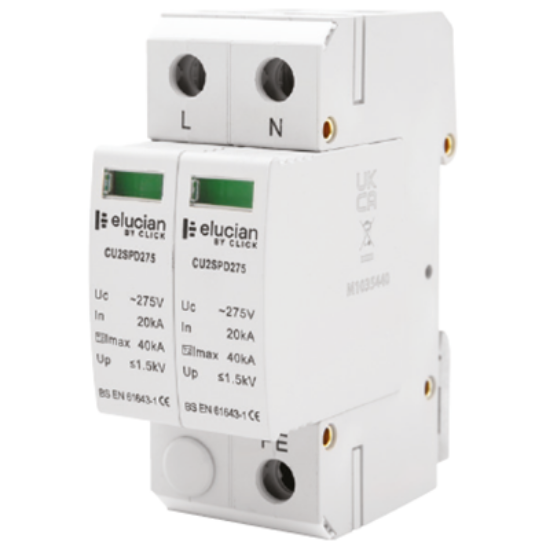

Picture of 2 Pole 275Uc (V~) 40kA Type 2 SPD
Picture of 2 Pole 275Uc (V~) 40kA Type 2 SPD

2 Pole 275Uc (V~) 40kA Type 2 SPD

Product Code : CU2SPD275

5 in Stock

£42.00 INC VAT

Features:

  • No. of Poles: 2
  • Finish: Light Grey (RAL 7035)
  • IP Rating: IP20
  • Standards: BS EN 61643-1-11
  • Warranty: 3 Years

Specifications

Dimensions36mm (W) x 90mm (H) x 70mm (D)
Maximum Continuous Operating Voltage (Uc)275V~
SPD TypeType 2
Number Of Poles2
IP RatingIP20
Internal Overcurrent Protection300A
Maximum Voltage Protection Level (Up)<1.6Kv
Nominal Discharge Current (ln)20kA (L-N & N-PE)
Maximum Discharge Current (lmax)40kA (L-N & N-PE)
Warranty3 Years
Response Time (tA)<25ns
Terminal CapacityL&N: 2.5mm²-35mm²
Compatible Earthing SystemsTT / TN
Operating Temperature-40°C to +70°C
