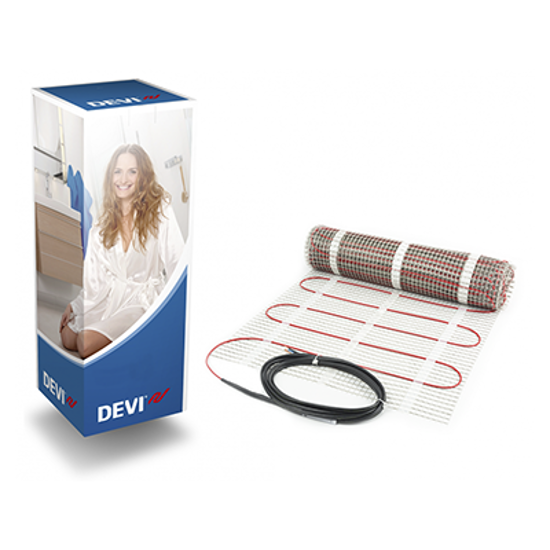

1500W/m² Heating Matt for Concrete Based Floors

Product Code : 83030586

1 in Stock

£351.29 INC VAT

Features:

  • Extremely high-quality
  • 360° screened twin conductor
  • Selfadhesive
  • All-in-one mat
  • Tough red PVC outer sheath
  • Round profile
  • Robust construction
  • Low height
  • Quick and easy to install
  • Clearly visible connection
  • Cables tested for high voltage
  • Cables tested for material
  • Tested for Ohmic resistance
  • Ensures quality

Specifications

Voltage220 - 240V~
ConstructionRound, twin conductor with 360° screen, one cold lead
Output150W/m2@230V~
Max. permissible use temperature, powered85° C
Max. permissible use temperature, unpowered90° C
Cable SizeThickness:4 mm
Resistance (Ohms)35.3
Deformation strength600N
Pulling strength120N
InsulationConductor insulation : FEP
Outer SheathPVC
Screen100% coverage; alu-foil; 0.5 mm2 tinned copper drain wire
Cold lead2.3 m DTWB, 2 x 1.0 mm2, earthed
Min installation temperature-5° C
Bending Radius50 mm
IP RatingIPX7
Area10.0
Dimensions0.5 x 20 m(W x L)
Wattage1500
