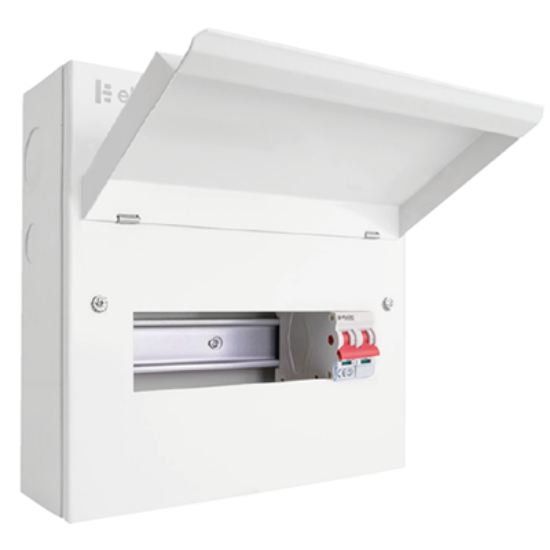

10 Way Metal Consumer Unit with 100A Mains Switch (8 Free Ways)

Product Code : CUEB10MS8

8 in Stock

£33.00 INC VAT

Features:

  • Total Ways: 10
  • Free Ways: 8
  • Blank modules supplied: 2
  • Impact Rating: IK05
  • IP Rating: IP20
  • Standards: BS EN 61439-3
  • Standards: BE EN 60947-3
  • Finish: White (RAL 9003)
  • Enclosure & Cover: Powder Coated Steel
  • DIN Rail: Galvanised Steel
  • Warranty (Devices): 3 Years
  • Warranty: 10 Years

Specifications

Number of ways10 Ways
Free Ways8 Ways
Maximum Rated Current (In)100A
Relative Humidity95% Max
Dimensions With Door258mm (W) x 260mm (H) x 115mm (D)
Enclosure Dimensions258mm (W) x 260mm (H) x 92mm (D)
Operating Voltage230V 50/60Hz
Warranty(Devices): 3 Years
Terminal Capacity35mm²
IP RatingIP20
Operating Temperature-5°C to +40°C
