Picture of 1 Pole True 6kA B Curve 20A 30mA RCBO
Picture of 1 Pole True 6kA B Curve 20A 30mA RCBO

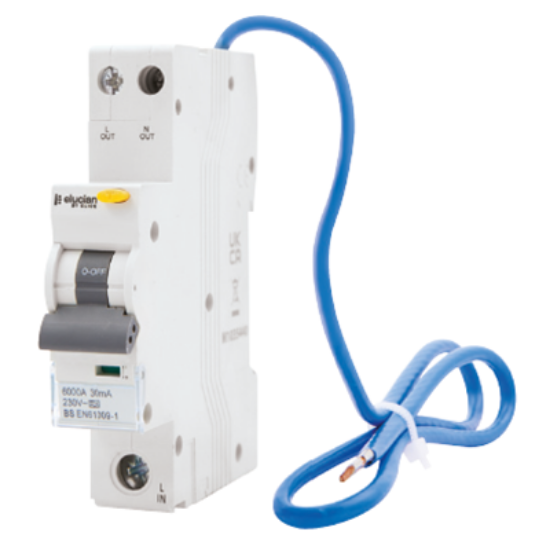

1 Pole True 6kA B Curve 20A 30mA RCBO

Product Code : CU1RCBO20B

22 in Stock

£14.40 INC VAT

Features:

  • 20A
  • RCD Type: A
  • MCB: B Curve
  • No. of Poles: 1P + N
  • Finish: Light Grey (RAL 7035)
  • IP Rating: IP20
  • Standards: BS EN 61009-1
  • Warranty: 3 Years

Specifications

Dimensions17.8mm (W) x 91.8mm (H) x 76.6mm (D)
Voltage240V
Frequency50/60Hz
Maximum Rated Current (In)20A
RCD TypeA
MCB Operating CharacteristicsB Curve
Neutral Tail Length450mm
Rated Breaking Capacity (Ics)True 6kA
Number Of Poles1P + N
Impulse Withstand Voltage (Uimp)4000V
Residual Current Making & Breaking Capacity (Im)500A
Tripping Current30mA
Operating Temperature-25°C to +40°C
IP RatingIP20
Warranty3 Years
